Place of Origin:
China
Brand Name:
Hengli
Certification:
ISO9000-2008
Model Number:
LD90
Contact Us

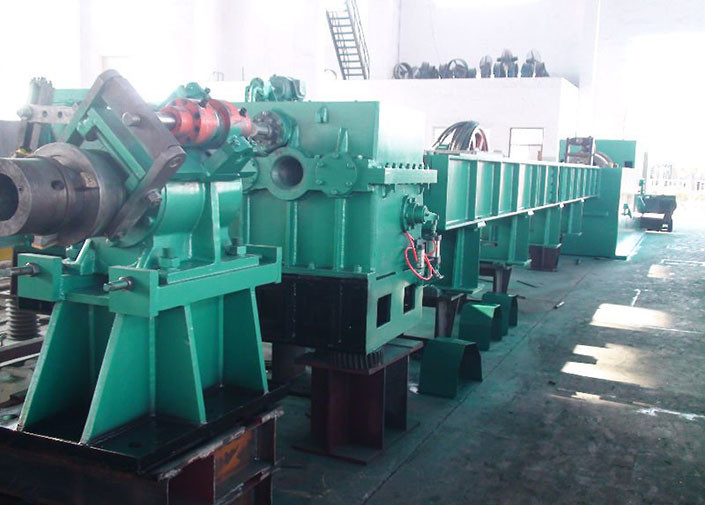

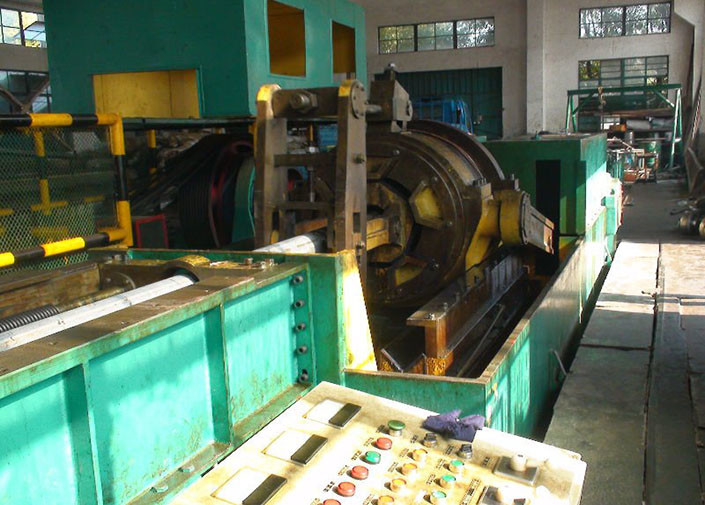

Scarp Aluminum 5 Roll 90KW Cold Pilger Mill Machinery with Common Carbon Steel
Applications:
|
Cold Rolling pilger mill is applied to reduce both out dimension and wall thickness of seamless tube. Tube material can be carbon steel, alloy steel, stainless steel, titanium, copper and copper alloy. LD90 five-roller cold pilger mill is applicable to state rolling,such as carbon steel,alloy steel,stainless steel,non-ferrous metal,rare metal and so on,with the characteristics of good turnoff precision,high surface roughness ect. |
Specifications:
Type: cold pilger mill
Used in: the field of Carbon pipes, Non-ferrous metal pipes, and so on.
|
No. |
Name |
LD90 cold pilger mill |
|
|
1 |
Shell OD(mm) |
35~114 |
mm |
|
2 |
Shell WT(mm) |
＜10 |
mm |
|
3 |
Shell Length(mm) |
6 |
mm |
|
4 |
Finished tube OD(mm) |
30~108 |
mm |
|
5 |
Finished tube WT(mm) |
0.2~8 |
mm |
|
6 |
Finished tube Length(m) |
15 |
m |
|
7 |
Stroke Frequency of Mill time/min |
40~80 |
time/min |
|
8 |
Stroke of Rolling mill bus(mm) |
752 |
mm |
|
9 |
Feeding Length(mm) |
2.7~10.3 |
mm |
|
10 |
rotation angle |
35° |
|
|
11 |
Roll Diameter(mm) |
249 |
mm |
|
12 |
Power(KW) |
90 |
KW |
|
13 |
Size (L×W×H) |
40×4.6×2.5 |
m |
Competitive Advantage:
We provides custom designed solutions on pilger mills and tube reducers. Our true value is in our expertise in engineering designs through active tri-matrix software and then constructing these designs using our 15+ years of production & maintenance experience. We pride ourselves in offering good engineering solutions to your tube manufacturing process with a commitment to customer satisfaction. Our global customer base covers all alloys such as aluminum, stainless steel, copper, titanium, zirconium, gold, silver, platinum, palladium, and other special alloy materials.
