Carbon Steel Pipe Cold Rolling Mill

Carbon Steel Pipe Cold Rolling Mill

cold rolling machine

metal rolling mill

Place of Origin:

China

Brand Name:

Hengli

Certification:

ISO9000-2008

Model Number:

LD90

Contact Us

Request A Quote
Product Details
Product Description





Carbon Steel Pipe Cold Rolling Mill equipment 90KW With 249mm Roll Diameter



Five-Roller Carbon Steel Pipe Cold Rolling Mill Machinery 90KW





Quick Detail:



Type: cold rolling mill

Brand name: Hengli

Model number: LD90

Input material: common carbon steel, alloy, nonferrous metal

After-sales service provided: overseas service available

Place of Origin: Jiangsu, China (Mainland)

Used in: the field of Carbon pipes, Non-ferrous metal pipes, and so on.





Description:





Applications:



LD90 five-roller cold rolling mill is applicable to state rolling,such as carbon steel,alloy steel,stainless steel,non-ferrous metal,rare metal and so on,with the characteristics of good turnoff precision,high surface roughness ect.





Specifications:



No.

Name

LD90



1

Shell OD(mm)

35~114

mm

2

Shell WT(mm)

<10

mm

3

Shell Length(mm)

6

mm

4

Finished tube OD(mm)

30~108

mm

5

Finished tube WT(mm)

0.2~8

mm

6

Finished tube Length(m)

15

m

7

Stroke Frequency of Mill time/min

40~80

 time/min

8

Stroke of Rolling mill bus(mm)

752

mm

9

Feeding Length(mm)

2.7~10.3

mm

10

rotation angle

35°



11

Roll  Diameter(mm)

249

mm

12

Power(KW)

90

KW

13

Size

(L×W×H)

40×4.6×2.5

m





Competitive Advantage:



We provides custom designed solutions on pilger mills and tube reducers. Our true value is in our expertise in engineering designs through active tri-matrix software and then constructing these designs using our 15+ years of production & maintenance experience. We pride ourselves in offering good engineering solutions to your tube manufacturing process with a commitment to customer satisfaction. Our global customer base covers all alloys such as aluminum, stainless steel, copper, titanium, zirconium, gold, silver, platinum, palladium, and other special alloy materials.

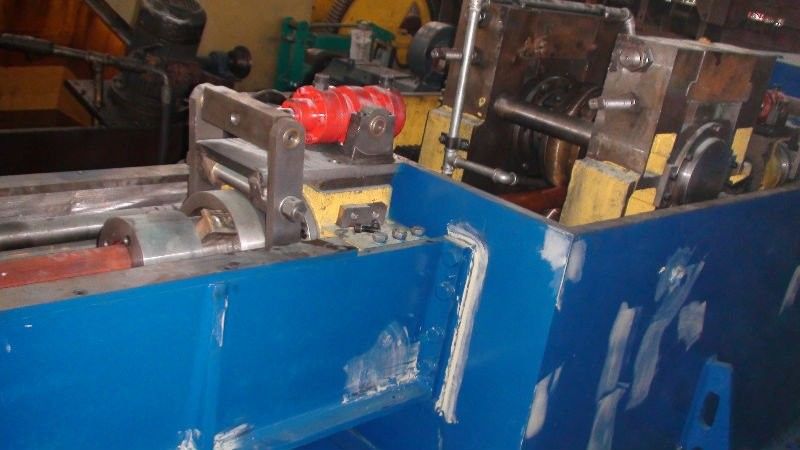

Reference photos for main equipment:



Carbon Steel Pipe Cold Rolling Mill  0

Certification:

Carbon Steel Pipe Cold Rolling Mill  1   Carbon Steel Pipe Cold Rolling Mill  2
