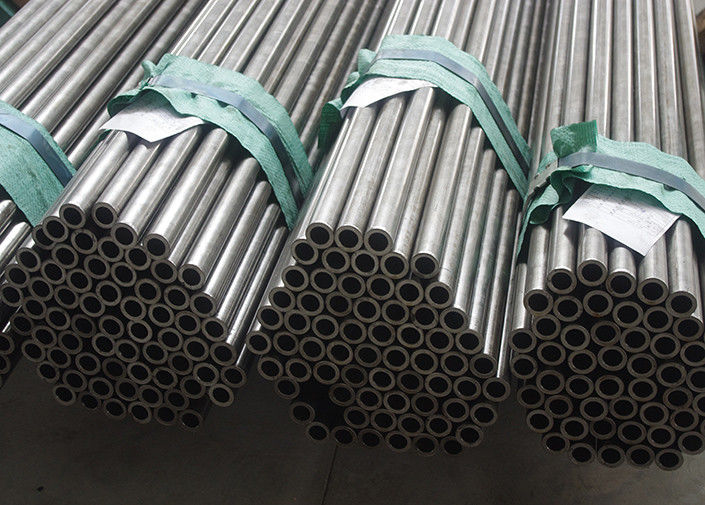

Carbon Boiler Cold Drawn Seamless Tube Astm 106 - 99 For High Pressure Boiler Pipe
Quick Detail:
Standard: ASTM 106-99, DIN17175-79
Steel grade:DIN 17175 13CrMo44 ,DIN 17175 10CrMo910,DIN 17175 12CrMo195,DIN 17175 X12CrMo91
Size: out diameter: 20-200mm
thickness: 0.1-20mm
length: 3-8m
Description:
Product Name | ASTM A106-99, DIN17175-79 seamless steel pipe |
Steel grade |
DIN 17175 13CrMo44 /,DIN 17175 10CrMo910,/DIN 17175 12CrMo195,/DIN 17175 X12CrMo91 |
Outer Diameter | 20mm to 200mm |
Wall Thickness | 0.1mm to 20mm |
Length | 6000mm or according to clients’ requirement |
Tolerance |
OD: ISO 1127 D1, D2, D3, D4; WT: ISO 1127 T1, T2, T3, T4; Length:-0mm/+5mm |
Surface | Annealed & Pickled,Bright Annealed,Polished to 180#, 240#, 320#, 400#, 600# |
Outside Coating |
black painting, anti-corrosion oil, galvanized or as per required by customer |
Test/Inspection | Ultrosonic test ; Hydrostatic test |
Payment terms | T/T,L/C ,western union |
Price terms | FOB,CIF,CFR,EXW |
Package | Standard export seaworthy package or as required. |
Delivery time | Prompt or as the order quantity. |
Place of origin | China |
Port | Shanghai |
Market | South America, Asia,Africa,Mid East, |
Productive technology |
cold rolled, cold-drawing, hot piercing |
Min Order | Normally 5 Ton or according to customer's requirement. |
Ends |
plain end or beveled end with cap or steel rings,thread with couplings or sockets,plastic bags, wooden boxes if required |
Certificate | ISO9001 |
Steel Grade |
10#,20#,35#,45#,16Mn,12CrMo, 35CrMo,20-25MoCr4, 30MnVS series, 48Mnv,38MnVS6 series, and so on |
Qualification | Indipendent inport and export qualifications |
Others | 1.Special design available according to requirement; |
2.Anti-corrosion and high-temperature resistant with black painting; | |
3.All the production process are made under the ISO strictly. | |
4.We have professional pipe fittings and steel pipes production equipment in China, all of products are produced by ourself, so we can give you BEST price with BEST quality, hope we will co-operate with each other based on mutual benefits. |
|
5.Raw material from Bao Steel and Jiu Li | |
6.Abundant stock and prompt delivery | |
7.Rich supply and export experience, sincere service | |
8.Reliable forwarder, 2-hour away from port. |
Specification:
product name | main material | standard | uses |
fluid pipe | 20,Q345 | GB/T8162-2008 | fluid transport |
precision tube |
St35 St37.4(10#) St45(20#) St55(35#) Ck45(45#) St52(16Mn) CH8Ni9Ti 35Cro |
GB/T3639-2000 DIN2391 |
for the automotive motorcycle, engineering machinery, electrical tools and sporting equipment, other areas |
high pressure boiler tube | 20G, A106c, ST45.8/3 |
GB5310-95 ASTMA106-99 DIN17175-79 |
heat-resistant high pressure boiler seamless steel pipe |
hydraulic prop tube | 27SiMn | GB5310-2008 |
hydraulic pressure stand hydraulic prop |
alloy-steel pipe |
12CrlMoV P22(10CrMo910) T91, P91, P9, T9, W36, Cr5Mo(P5, STFA25, T5), 15CrMo(P11, P12, STFA22), 13CrMo44, Cr5Mo,15CrMo, 25CrMo, 30CrMo, 40CrMo |
DIN17175-79 JISG3467-88 JISG3458-88 GB5310-95 GB9948-88 ASTMA335/A335m ASTMA213/A213m |
high-temperature resistant, low temperature resistant corrosion resietant seamless pipe for petroleum, chemical, electric power, boiler industry |
casing pipe | J55,N80,P110 | API, SPEC, 5CT |
oil pipe for oil well, coupling cylinder |
low and medium pressure boiler tube | 10, 20 | GB3087-1999 | for low and medium pressure boiler, boiling tube, motorcycle, smoke tube |
oil cracking tube | 20, 12CrMo, 15CrMo | GB9948-88 |
furnace tube for refined petroleum refining plant, heat-exchanger tube, pipeline seamless pipe |
high pressure seamless pipe for chemical fertilizer equipment |
20, 16Mn, Q345 | GB6479-2000 | fertilizer equipment pipeline |
marine tube | 410 | GB/T5312-1999 |
specifical pressure pipe for vessel manufacturing, tube for boilers and overheating |
ductile iron pipe | iron |
GB/T13295-2003 ISO2531/2003 |
public works, mining, textile, electric power, boilers, drinking water, machinery, military industry |
Application:
Cold drawn seamless steel pipe is applied for Petroleum,Chemical enterprise, superheater of boiler, heat exchanger; High temperature resistant transmission fluid pipe in power station; Ship with pressure pipe; The exhaust purification devices; Home appliance, electrical components,decorate pipe; Precision instrument manufacture, etc.
Competitive advantage:
Jiangsu Hengyang Steel Pipe Co., Ltd is a pipe manufacturing, we have the latest machine and the professional technicians. We aim at offering high quality pipe with competitive price for our global customers.
Factory equipments:
Quality control:
