Stainless Steel Tube Straightening Machine For Seamless Pipe Manufacturing

Stainless Steel Tube Straightening Machine For Seamless Pipe Manufacturing

Roll Straightening Machine

tube straightening machine

Place of Origin:

China

Certification:

ISO9000-2008

Model Number:

GJ100

Contact Us

Request A Quote
Product Details
Product Description

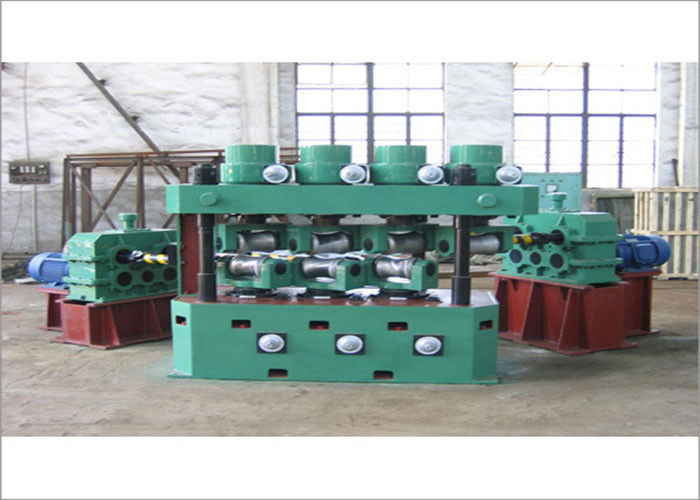

Stainless Steel Tube Straightening Machine For Seamless Pipe Manufacturing



GJ100 Steel Pipe Fitting Straightening Press Machine





Quick Detail:



1. Type: Straightenner machine

2. Model Number: GJ100

3 Used in: the field of Carbon pipes,Non-ferrous metal pipes,and so on.



Description:



Introduction of the straightening machine


Straightening machines have been built with various methods of driving the rolls. Some machines have a separate drive motor for each roll, whereas the majority of modern machines usually use 2 drive motors, one motor for the top set of rolls and one for the bottom rolls. Regardless of the way the rolls are driven it is important that all rolls revolve at the same speed within about 1 to 2 rpm at maximum machine speed. In addition it is usual for the manufacture to build in an electronic load sharing system to ensure that the power needed to straighten is shared equally between the driving motors. Each time the rolls are changed a check of roll rpm and motor loading should be carried out.
If the rolls are not revolving at highly similar speeds, under load, tube straightness will be poor, roll wear will be rapid and under high straightening loads the motors may run out of power and stall.



Specifications:



No.

Name

Value

Unit

1

Maximum yield limit of material

600

Mpa

2

Outer diameter of pipe

40-100

mm

3

Wall thickness range of pipe

1-12

mm

4

Straightening speed

36

m/min

5

Throat diameter of straightening roll

220

mm

6

Length of straightening roll

320

mm

7

Adjusting angle of transmission roll

32-38

degree

8

Roller space of straightening roll

590

mm

9

Type of main motor

Y225M-6



10

Power of main Motor

30*2

kw

11

Rotating speed of main motor

980

r/min

12

Speed ratio of main speed reducer

9.92

mm

13

Maximum camber of steel pipe before straightening

30

mm/m

14

Camber of steel pipe after straightening

≤1

mm/m
