Seamless Steel Pipes Cold Rolling Mill , Pipe Making Machine LG150
LG150 cold pilger mill for making seamless steel pipes
Quick Detail:
Type: Cold Pilger Mill
Brand name: Hengli
Model number: LG150
Input material: common carbon steel, alloy, nonferrous metal
After-sales service provided: overseas service available
Place of Origin: Jiangsu, China (Mainland)
Used in: the field of Carbon pipes,Non-ferrous metal pipes,and so on.
Description:
Applications:
LG150 two-roller cold rolling mill is applicable to state rolling,such as carbon steel,alloy steel,stainless steel,non-ferrous metal,rare metal and so on,with the characteristics of good turnoff precision,high surface roughness ect.
Specifications:
|
No. |
Name |
LG150 |
|
|
1 |
Shell OD(mm) |
115~215 |
mm |
|
2 |
Shell WT(mm) |
4~20 |
mm |
|
3 |
Shell Length(mm) |
8 |
mm |
|
4 |
Finished tube OD(mm) |
89~190 |
mm |
|
5 |
Finished tube WT(mm) |
2~18 |
mm |
|
6 |
Finished tube Length(m) |
25 |
m |
|
7 |
Stroke Frequency of Mill time/min |
40~60 |
time/min |
|
8 |
Stroke of Rolling mill bus(mm) |
1167 |
mm |
|
9 |
Feeding Length(mm) |
2.4~10.3 |
mm |
|
10 |
rotation angle |
42° |
|
|
11 |
Roll Diameter(mm) |
620(590) |
mm |
|
12 |
Power(KW) |
320 |
KW |
|
13 |
Size (L×W×H) |
48*7*3 |
m |
Competitive Advantage:
We provides custom designed solutions on pilger mills and tube reducers. Our true value is in our expertise in engineering designs through active tri-matrix software and then constructing these designs using our 15+ years of production & maintenance experience. We pride ourselves in offering good engineering solutions to your tube manufacturing process with a commitment to customer satisfaction. Our global customer base covers all alloys such as aluminum, stainless steel, copper, titanium, zirconium, gold, silver, platinum, palladium, and other special alloy materials.
Seamless Steel Pipes Cold Rolling Mill , Pipe Making Machine LG150

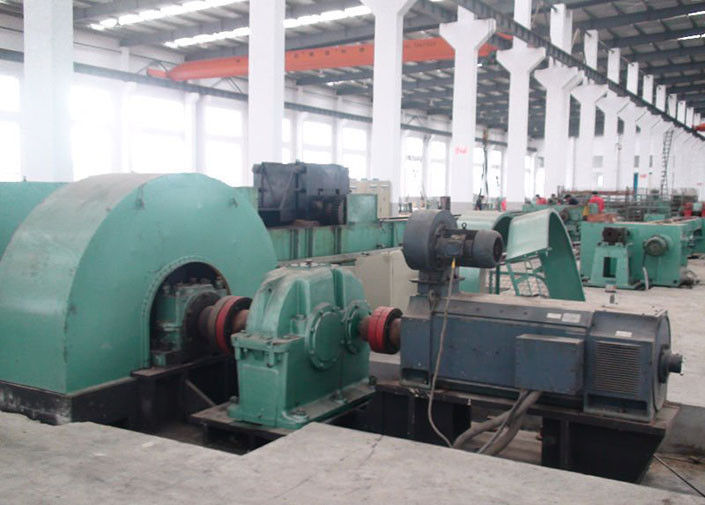

Reference photos for main equipment:
Factory pictures:
