2 Roll Steel Rolling Mill 670KW

2 Roll Steel Rolling Mill 670KW

tube rolling mill

steel rolling mill machinery

Place of Origin:

China

Certification:

ISO9000-2008

Model Number:

LG325

Contact Us

Request A Quote
Product Details
Product Description





2 Roll Steel Rolling Mill 670KW , 680mm Roll Diameter Tube Making Machine





Quick Detail:



Type: steel rolling mill

Brand name: Hengli

Model number: LG325

Input material: common carbon steel, alloy, nonferrous metal

After-sales service provided: overseas service available

Place of Origin: Jiangsu, China (Mainland)

Description:



Applications:



LG325 two-roller cold rolling mill is applicable to state rolling,such as carbon steel,alloy steel,stainless steel,non-ferrous metal,rare metal and so on,with the characteristics of good turnoff precision,high surface roughness ect.





Specifications:



No.

Name

LG325



1

Shell OD(mm)

195~365

mm

2

Shell WT(mm)

6~28

mm

3

Shell Length(mm)

6

mm

4

Finished tube OD(mm)

168~325

mm

5

Finished tube WT(mm)

3~25

mm

6

Finished tube Length(m)

20

m

7

Stroke Frequency of Mill time/min

20~50

 time/min

8

Stroke of Rolling mill bus(mm)

1155

mm

9

Feeding Length(mm)

2~12

mm

10

rotation angle

41~52



11

Roll  Diameter(mm)

680(840)

mm

12

Power(KW)

670

KW

13

Size

(L×W×H)

58×8×4

m





Competitive Advantage:



We provides custom designed solutions on pilger mills and tube reducers. Our true value is in our expertise in engineering designs through active tri-matrix software and then constructing these designs using our 15+ years of production & maintenance experience. We pride ourselves in offering good engineering solutions to your tube manufacturing process with a commitment to customer satisfaction. Our global customer base covers all alloys such as aluminum, stainless steel, copper, titanium, zirconium, gold, silver, platinum, palladium, and other special alloy materials.

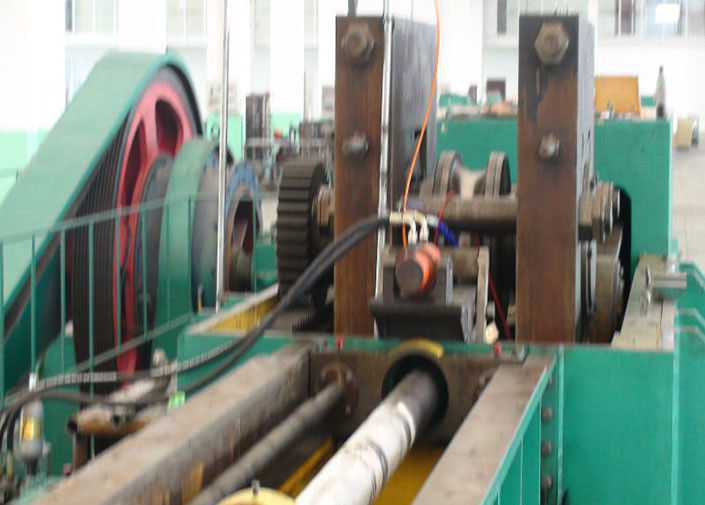

Reference photos for main equipment:

2 Roll Steel Rolling Mill 670KW 0



Certification:

2 Roll Steel Rolling Mill 670KW 1
