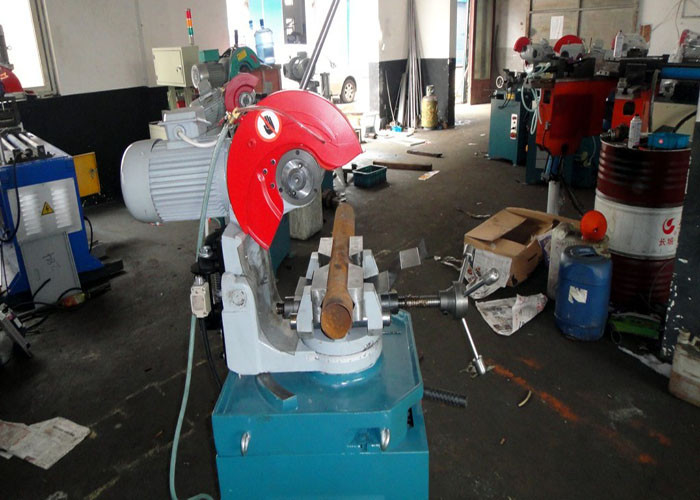

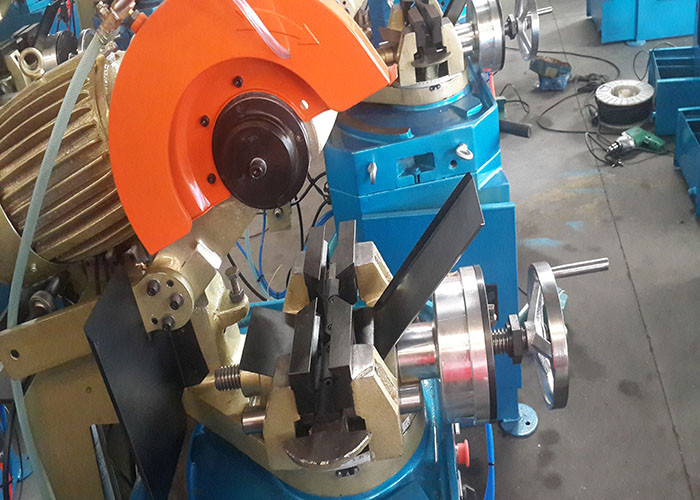

Hydraulic Stainless Steel Metal Pipe Cutting Machine With 1 - 38 mm OD 120W

Hydraulic Stainless Steel Metal Pipe Cutting Machine With 1 - 38 mm OD 120W

    • Hydraulic Stainless Steel Metal Pipe Cutting Machine With 1 - 38 mm OD 120W
    • Hydraulic Stainless Steel Metal Pipe Cutting Machine With 1 - 38 mm OD 120W
    • Hydraulic Stainless Steel Metal Pipe Cutting Machine With 1 - 38 mm OD 120W
    • Hydraulic Stainless Steel Metal Pipe Cutting Machine With 1 - 38 mm OD 120W
  • Hydraulic Stainless Steel Metal Pipe Cutting Machine With 1 - 38 mm OD 120W

    Product Details:

    Place of Origin: Jiangsu China
    Brand Name: Hengyang
    Certification: ISO9001-2000
    Model Number: 160-31

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: According to customers' requests
    Delivery Time: 60days
    Payment Terms: 30%advanced payment byTT, 70% before shipment
    Supply Ability: 20 per month
    Contact Now
    Detailed Product Description
    Name: Metal Pipe Cutter Power:: Hydraulic




    Hydraulic Stainless Steel Metal Pipe Cutting Machine With 1 - 38 mm OD 120W



    160-31 Hydraulic Metal Circular Sawing Machine, Automatic Stainless SteelMetal Circular Sawing Machine




    Quick Details



    Condition: New                                                                        Place of origin: Jiangsu China

    Model Number: 160-31                                                            Machine Type: Pipe and Tube Cutting Machine

    Raw Material: Pipe                                                                   Power: Hydraulic

    Certification: CE&ISO                                                               Cooling System: water cooling


    Product Description:


    160-31 automatic pipe cutting machine for Stainless steel pipe

    Automatic clip feed, cutter feed, fixed-inch set, given the number of stop and work measurement functions.
    The machine is mainly worked by circuit Mitsubishi PLC computer controller which is easy operation focused, sensitive and simple maintenance.  Automatic feeding, clamp the material, cut feeding system, feeding precise, fast and can cut 4-10 times per minute, cutting, without hurting the surface.
    Counter can be set to cut the number of materials, automaticly shutdown after the cut material is completed.Counter can count the total day's work record. The total pressure,  before and after pressure can be adjusted without stop to ensure that the work does not crush deformation. Cutting length accuracy at plus or minus 0.03m, smooth surface without burr,disposable clip cut 1-10 pipes each time.
    Front clip after clip, blade speed, feed speed can be adjusted by paragraph, Work and workpiece accuracy is under control.

    Automatic mode:All manual recovery (Right) to select subtotals Shall be cut several times and sent several materials, After the starter motor (motor ON) Press (initiating) motor does not start or saw table is not working,means each switch is not reset,Not automatically.


    Using Parameters

    Cut pipe diameter

    1-38mm

    Cut pipe wall thickness

    0.15mm-2.5mm

    Main motor power

    6P/1HP/0.75KW/380V

    Spindle speed

    150-430 Rev / min

    Coolant pump motor

    120W/380V

    Head / flow

    4M/25

    Saw parameters

    Diameter160/Aperture25.4/Thickness0.5-1MM

    Feed length

    2mm-350mm That can be sent twice which means 700mm

    Net weight

    400kgs

    Dimensions

    (Length × width × height)1560mm×820mm×1470mm



    Random factory documents and information:



    1 1 Product certification

    2 1 Instructions

    3 a set of distribution ring

    4 an allen wrench set.

    5 Mould drawings (provided by contract).





    Installation, commissioning, training, after-sales service



    1,Installation and acceptance

    1.1 After the machinery from the supply side to the demand side, the demand side is responsible for unloading facility.

    1.2  Supplier is responsible for the mechanical commissioning.

    1.3Demand side should accept the machine after bending specimens according to demand’s request (subject to the requirements of the contract)

    2,Training

    Train to all the adjustment workers, operators, maintenance workers (hydraulic, pneumatic lubrication system maintenance personnel, electrical, electronic and control systems personnel, CNC programmers, technical staff),to make sure they can operate, adjust, repair, programming properly.

    3,Service.

    3.1 Quality "three guarantees" period: 12 months form the commissioning date of acceptance by the demand side

    3.2 During the "three guarantees" period of equipment failure, the supplier is responsible for free repair, replacement parts (except for the demand side in violation of the rules of accidental damage caused).

    3.3 Responding to the supplier to provide services required by the buyer receives telephone (fax) the day after, within 48 hours (except holidays) sent to the demand-side scene.



    Hydraulic Stainless Steel Metal Pipe Cutting Machine With 1 - 38 mm OD 120WHydraulic Stainless Steel Metal Pipe Cutting Machine With 1 - 38 mm OD 120W
