3 Roller Steel Pipe Rolling Machine For Non Ferrous Metals / Carbon Steel Tube

3 Roller Steel Pipe Rolling Machine For Non Ferrous Metals / Carbon Steel Tube

    • 3 Roller Steel Pipe Rolling Machine For Non Ferrous Metals / Carbon Steel Tube
    • 3 Roller Steel Pipe Rolling Machine For Non Ferrous Metals / Carbon Steel Tube
  • 3 Roller Steel Pipe Rolling Machine For Non Ferrous Metals / Carbon Steel Tube

    Product Details:

    Place of Origin: China
    Brand Name: Hengli
    Certification: ISO2000
    Model Number: LD30

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: The machine must be entirely rust proof coated and painted using good quality rust proof coat and paint then oiled and packed in plastic to avoid rusting at sea. machine should be on wooden planks.
    Delivery Time: 60 days
    Payment Terms: TT/LC
    Supply Ability: 20 sets/month
    Contact Now
    Detailed Product Description





    3 Roller Steel Pipe rolling Machine For Non Ferrous Metals / Carbon Steel Tube





    Quick Detail:



    Type: cold rolling mill

    Brand name: Hengli

    Model number: LD30

    Input material: common carbon steel, alloy, nonferrous metal

    After-sales service provided: overseas service available

    Place of Origin: Jiangsu, China (Mainland)

    Used in: the field of Carbon pipes,Non-ferrous metal pipes,and so on





    Description:



    DESCRIPTION OF THE MILL

    In general, the pilgering process has two primary purposes:
    *One, and most importantly, pilgering is a cold working process that greatly improves the material grain structure.
    *Two, it is a way of reducing large amounts of the outside diameter and inside diameter of a preexisting tube very quickly. Reduction rates can be as high as nearly 100% on some alloys.

    LD30 three-roller cold rolling mill is applicable to state rolling,such as carbon steel,alloy steel,stainless steel,non-ferrous metal,rare metal and so on,with the characteristics of good turnoff precision,high surface roughness ect.





    Applications:



    Be used in the field of Carbon pipes,Non-ferrous metal pipes,and so on.



    Detailed Product Description



    No.

    Name

    LD30



    1

    Shell OD(mm)

    17~38

    mm

    2

    Shell WT(mm)

    <2.5

    mm

    3

    Shell Length(mm)

    5

    mm

    4

    Finished tube OD(mm)

    15~35

    mm

    5

    Finished tube WT(mm)

    0.1~2

    mm

    6

    Finished tube Length(m)

    12

    m

    7

    Stroke Frequency of Mill time/min

    65~110

     time/min

    8

    Stroke of Rolling mill bus(mm)

    475

    mm

    9

    Feeding Length(mm)

    2~8.3

    mm

    10

    rotation angle

    54°



    11

    Roll  Diameter(mm)

    75

    mm

    12

    Power(KW)

    37

    KW

    13

    Size

    (L×W×H)

    20×3×1.3

    m





    Additional features



    Technical Documents

    All labels on machines and layout drawings, electrical diagram, operated manual will be English and will be offered by manufacturer after machine transported.



    Payment

    30% down payment should be paid by T/T, 70% of the contract value by T/T 7 says before shipment.



    Delivery

    1. At 2 months after receiving your down payment and relative documents.
    2. The machine need One 40 Size Containers
    3. Installation and test.





    Competitive Advantage:



    Why chose us?



    We provides custom designed solutions on pilger mills and tube reducers. Our true value is in our expertise in engineering designs through active tri-matrix software and then constructing these designs using our 15+ years of production & maintenance experience. We pride ourselves in offering good engineering solutions to your tube manufacturing process with a commitment to customer satisfaction. Our global customer base covers all alloys such as aluminum, stainless steel, copper, titanium, zirconium, gold, silver, platinum, palladium, and other special alloy materials.



    Services


    We engineering staff carefully assesses customer's tool designs to ensure proper material flow occurs for your tube alloy. This process includes analysis of tube products and tube transitions. Solutions are then derived from this data and corrective measures may be initiated for your tube process.

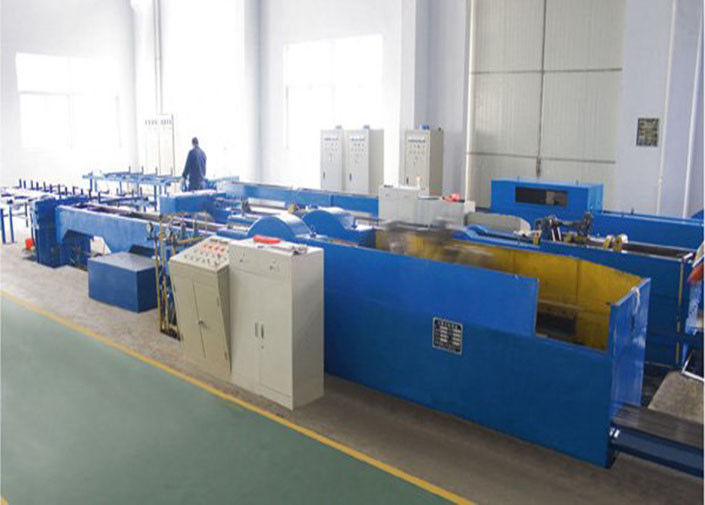

    Reference photos for main equipment:

    3 Roller Steel Pipe Rolling Machine For Non Ferrous Metals / Carbon Steel Tube



    Factory picture:

    3 Roller Steel Pipe Rolling Machine For Non Ferrous Metals / Carbon Steel Tube



    Certification:



    3 Roller Steel Pipe Rolling Machine For Non Ferrous Metals / Carbon Steel Tube
