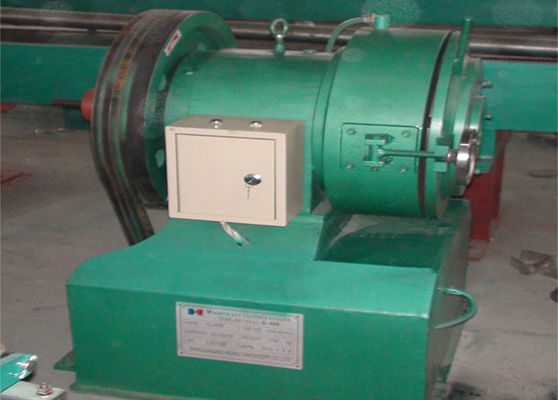

Automatic Pipe Shrinking Machine

Automatic Pipe Shrinking Machine

automatic shrink wrap machine

shrink wrapping machine

Place of Origin:

Jiangsu China

Brand Name:

Xingyu

Certification:

ISO9001-2000

Model Number:

G400

Contact Us

Request A Quote
Product Details
Product Description





Automatic Pipe Shrinking Machine 3KW , Stainless Steel Pipe Shrinking Machine



G400 pipe-shrinking machine for making pipe  before done in drawing machine





Quick Detail:



1. Type: pipe-shrinking machine

2. Model Number: G400

3. Used in: G400 pipe-shrinking machine is for making pipe before drawing machine,the material can be any metal.G400 pipe-shrinking machinecan roll pipe diameter of 12--25mm to 10--20mm.



The technical parameters:



Operating Instructions:





No. Name Technical Parameters Unit
1 Range of Reduction
 for Diameter
12 ~ 25 mm
2 Diameter of Mother Tube 10 ~ 20 mm
3 Time for
one reduction
4 ~ 6 s
4 Motor 3 kw
5 System pressure 17 Mpa
6 Machine Size 700*550*990 mm
7 Machine weight 500 kg





G400 pipe-shrinking  machine operations and processes



 1. Take out the mould by rotating it according to arrow direction, no reverse rotation allowed.

 2. Moulds can be changed according to different specifications.

3. Head length can be adjusted by middle adjusting rod, loose the belt wheel screw,  adjust the length and fasted the screw again.

4. Pour in 80% diesel and 20% engine oil, as the oil pump capacity is big, oil box entrance valve should be fully open, machine valve fix a little oil is ok.

5. After the umbrella-block wear down and the gap becomes big, you can put a gasket between umbrella block and the mould, but the gasket can not be too thick so that machine won't get stuck.

6. The lubrication oil should be changed after it gets dirty.





Safety Precautions



1,Place the machine on a fixed horizontal surface and the calibration level, the machine is stable.

2,Check the oil level before use, to keep the hydraulic oil target position in 1/2 or more.

3,Check the motor rotation, such as rotation error, please adjust the power wiring.

4,When the state machine automatically, please confirm the accuracy of the input data.

5,When the machine is operating, safety, the hands, the body, such as near the action area is prohibited.

6,People must be dedicated machine operation, and the operator should be able to reach and stand within the scope of the emergency stop button.

7,Machine must be grounded.

8,When remove mold, must turn off the power.

9,Please refuel oil regularly.

10,Keep the machine and the environment clean.

11,Not allowed to work in the dust, conductive particles and acids and other places.





Factory picture:



Automatic Pipe Shrinking Machine  0



Part of the machine:



Automatic Pipe Shrinking Machine  1
