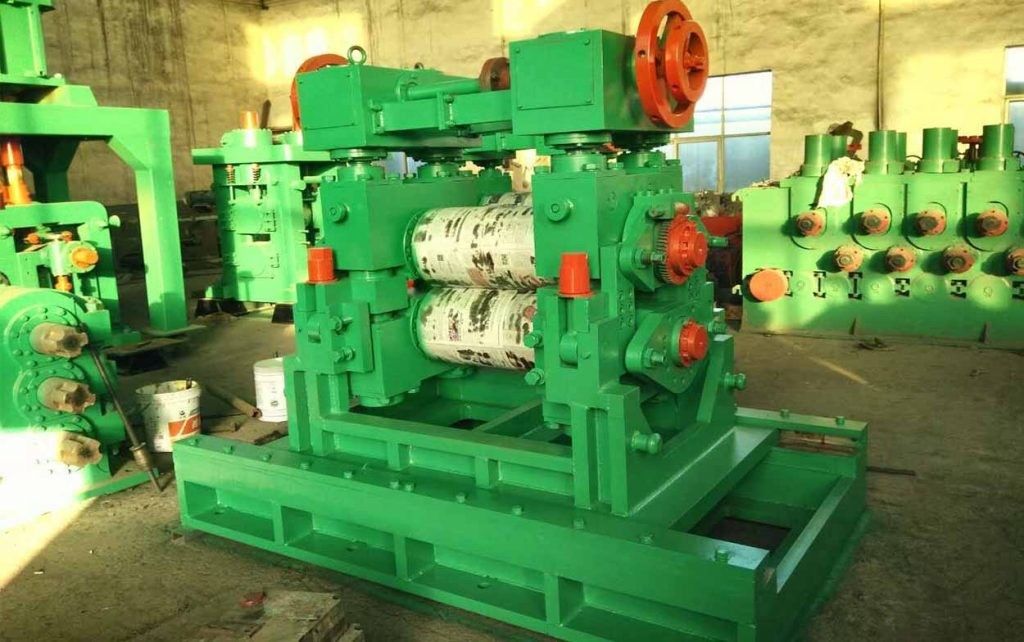

LD20 Three Roller Steel Rolling Mill For Seamless Tube Making 22mm

LD20 Three Roller Steel Rolling Mill For Seamless Tube Making 22mm

LD20 Three Roller Steel Rolling Mill

Seamless Tube Making Steel Rolling Mill

22mm Steel Rolling Mill

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Machine Type:
LD20 Cold Pilger Mill
Hollow Tube OD:
Hollow Tube WT:
Finished Tube OD:
Finished Tube WT:
Product Description



Triple Roll Steel Rolling Mill , Cold Drawn Seamless Tube Making Machine


The mill is intended for manufacturing of round pipe of Φ25mm-Φ76mm with thickness of 1.2mm–4.0mm from cold-rolled and hot-rolled coil strip by means of unclosed tubular blank with its subsequent welding into tube, edge heating by means of solid state high-frequency welder, longitudinal seam welding in rolls of tube welding machine, cooling, further sizing or shaping and on-stream cutting of endless tube in measured lengths. Finished product will be of round pipe, square and rectangle pipe.


Steel Pipe Specification
Round Pipe diameter Ø60–Ø165mm
Pipe Thickness 1.5– 5.0mm
Square and rectangle pipe 50X50mm –130X130mm
Pipe Thickness 1.5 – 5.0mm
Pipe Length 6-9m
Length Tolerance 0-6mm


Steel Tape Specification
Material Carbon steel (δb≤500Mpa, δs≤235Mpa)
Inner diameter Φ470-Φ510mm
Outer diameter Φmax=1900mm
Strip steel width 80mm-240mm
Strip steel thickness 1.2mm-4.0mm
The maximum weight 3.0 tons
Electric installed capacity appro.300KW
Line Speed 20-60m/min


Technical Documents

All labels on machines and layout drawings, electrical diagram, operated manual will be English and will be offered by manufacturer after machine transported.
