Non Ferrous Horizontal 1858KW Rotary Tube Piercing Mill

Non Ferrous Horizontal 1858KW Rotary Tube Piercing Mill

  • High Light

    Horizontal Piercing Mill

    ,

    rotary tube Piercing Mill

    ,

    Piercing pipe rolling mill

  • NAME
    Rotary Tube Piercing / Hydraulic Punching Machine
  • Used In
    The Field Of Carbon Pipes,Non-ferrous Metal Pipes
  • Place of Origin
    China
  • Certification
    ISO9000-2008
  • Model Number
    LWX100
  • Minimum Order Quantity
    1
  • Packaging Details
    60 days
  • Delivery Time
    TT/LC
  • Payment Terms
    20 sets/month
  • Supply Ability
    1

Non Ferrous Horizontal 1858KW Rotary Tube Piercing Mill



Horizontal 1858KW Piercing Mill Machinery For Seamless Stainless Steel Pipe



Quick Detail:


1. Type: piercing mill
2. Model Number: LWX100
3 Used in: the field of Carbon pipes,Non-ferrous metal pipes,and so on.




Description:


Mannesmann Piercing Mill
Billet piercing is the most important deforming process in the production of seamless pipe hot rolling. It aims to pierce the solid billet into shell.
We mainly produce Mannesmann piercing mill and horizontal cope type piercing mill. Mannesmann piercing mill is widely used nowadays because it needs low investment and short period of installation and commissioning, and has the features of flexible production and simple operation.
The characteristics of horizontal cope type piercing mill are high precision of shell geometer sizes, big elongating coefficient, better concentricity and even wall thickness, higher productivity and better piercing process than Mannesmann piercing mill. It also needs lower investment compared with vertical cope type piercing mill. Horizontal cope type piercing mill is advanced nowadays. We can manufacture various kinds of piercing mill ranging Ф50 ~Ф300 mm.



Specifications:



NO

Name

Technical Parameters

Unit

1

Billet Diameter

80--160

mm

2

Billet Length

2000-3000

mm

3

Hollow Diameter

83-175

m

4

Hollow Length

≤9000

mm

5

Main motor

1600

kw

6

Main reducer(type)

ZDY710



7

Main roller diameter

620-720

mm

8

Main roller length

650

mm

9

capacity of the equipment

1858

kw

10

Size

43.8*4.6*3.3

m

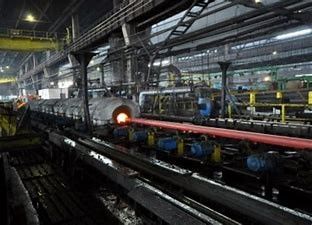

Non Ferrous Horizontal 1858KW Rotary Tube Piercing Mill 0Non Ferrous Horizontal 1858KW Rotary Tube Piercing Mill 1
