7.5kw Automatic Metal Pipe Tube End Reducing Forming Shrinking Machine
1
MOQ
7.5kw Automatic Metal Pipe Tube End Reducing Forming Shrinking Machine
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Jiangsu China
Brand Name: Xingyu
Certification: ISO9001-2000
Model Number: G400
High Light:

Automatic Pipe Shrinking Machine

,

End Reducing Forming Pipe Shrinking Machine

,

7.5kw Metal Tube Shrinking Machine

Payment & Shipping Terms
Packaging Details: According to customers' requests
Delivery Time: 60days
Payment Terms: 30%advanced payment by TT,70% before shipment
Supply Ability: 20 per month
Specifications
Name: Shrink Wrap Equipment
Range Of Reduction For Diameter: 12-25mm
Core Components:: PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
Color: Blue/Red/Yellow
Workpiece Thickness:: 1.0-2.0mm
Main Motor:: 7.5kw
Product Description

Automatic Metal Round Square Tapper Pipe Tube End Reducing Forming Shrinking Machine



Semi-automatic Taper machine use cast iron body, more stable, lower noise.Mechanical parts and electrical parts are arranged neatly, more easier to repair.Forming speed can be fast as 2 second.Reasonable Price, you get what you pay for. This machine can process wall thickness(1.0-2.0mm),diameter(φ38-φ76mm),forming length(490mm) metal pipes,such as stainless steel pipes,iron pipes,copper pipes,aluminium pipes and so on.Widely used in furniture industry.Forming result is great.Welcome to sample customization!



Pipe end forming machine is a kind of high efficiency,automatic machine. It can be do different types of end forming as reduction, expansion, beads, flare and thickening. Each of these categories has special requirements and is used in a variety of applications. It is controlled by hydraulic and electricity at the same time.It combines easy-to-use operation with high end forming accuracy and cost effectiveness.



Operating Instructions:

No. Name Technical Parameters Unit
1 Range of Reduction
 for Diameter
12 ~ 25 mm
2 Diameter of Mother Tube 10 ~ 20 mm
3 Time for
one reduction
4 ~ 6 s
4 Motor 3 kw
5 System pressure 17 Mpa
6 Machine Size 700*550*990 mm
7 Machine weight 500 kg





G400 pipe-shrinking  machine operations and processes



 1. Take out the mould by rotating it according to arrow direction, no reverse rotation allowed.

 2. Moulds can be changed according to different specifications.

3. Head length can be adjusted by middle adjusting rod, loose the belt wheel screw,  adjust the length and fasted the screw again.

4. Pour in 80% diesel and 20% engine oil, as the oil pump capacity is big, oil box entrance valve should be fully open, machine valve fix a little oil is ok.

5. After the umbrella-block wear down and the gap becomes big, you can put a gasket between umbrella block and the mould, but the gasket can not be too thick so that machine won't get stuck.

6. The lubrication oil should be changed after it gets dirty.





Safety Precautions



1,Place the machine on a fixed horizontal surface and the calibration level, the machine is stable.

2,Check the oil level before use, to keep the hydraulic oil target position in 1/2 or more.

3,Check the motor rotation, such as rotation error, please adjust the power wiring.

4,When the state machine automatically, please confirm the accuracy of the input data.

5,When the machine is operating, safety, the hands, the body, such as near the action area is prohibited.

6,People must be dedicated machine operation, and the operator should be able to reach and stand within the scope of the emergency stop button.

7,Machine must be grounded.

8,When remove mold, must turn off the power.

9,Please refuel oil regularly.

10,Keep the machine and the environment clean.

11,Not allowed to work in the dust, conductive particles and acids and other places.

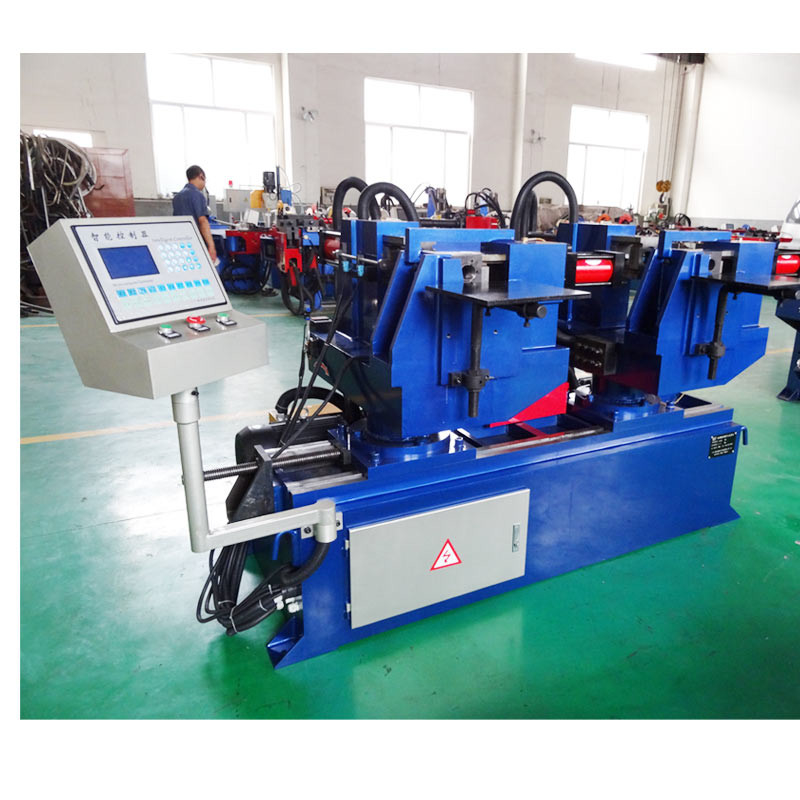

Factory picture:
