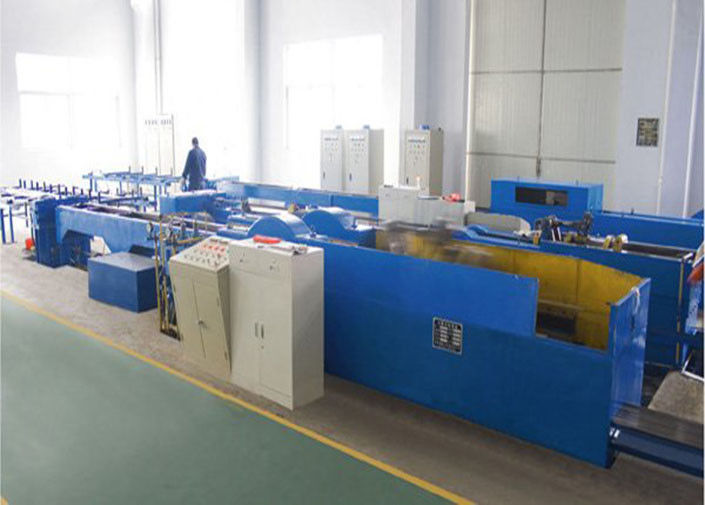

high speed 30KW 220mm Roll Diameter Pilger Mill Machine

high speed 30KW 220mm Roll Diameter Pilger Mill Machine

    • high speed 30KW 220mm Roll Diameter Pilger Mill Machine
  • high speed 30KW 220mm Roll Diameter Pilger Mill Machine

    Product Details:

    Place of Origin: China
    Brand Name: Hengli
    Certification: ISO9000-2008
    Model Number: LG20

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: The machine must be entirely rust proof coated and painted using good quality rust proof coat and paint then oiled and packed in plastic to avoid rusting at sea. machine should be on wooden planks.
    Delivery Time: 60 days
    Payment Terms: TT/LC
    Supply Ability: 20 sets/month
    Contact Now
    Detailed Product Description
    Name: Cold Rolling Machine Input Material: Alloy Steel
    Shell OD(mm): 20~42mm Finished Tube OD(mm): 10~25mm
    Power(KW): 30 Use: Food
    High Light:

    220mm Pilger Mill Machine


    30KW Pilger Mill Machine


    220mm Cold Pilger Mill

    High-speed continuous rolling Cold Pilger Mill



    • Chemical industry
    • Food
    • Pure gas applications
    • Boiler construction
    • Drilling and boring
    • High pressure tubes
    • Automotive engineering
    • Plumbing tubes
    • Air-conditioning systems
    • Refrigerators
    • Heat exchangers

    cold rolled mill  Equipment working principle:

    Prefabricate the tool and die of the size required, and then install the tool and die within the equipment. In the working process of the equipment, the billets will be fed forward successively, in which the upper and lower roller will move in a reciprocating way, the outer diameter and wall thickness of the billet will be re-rolled to realize the size required by the customer through the physical change.


    Cold Pilger Mill Details:


    Shell Tube OD(mm) 20~42 mm
    Shell Tube WT(mm) 1-5 mm
    Shell Tube Length 5 m
    Finished tube OD(mm) 10~25 mm
    Finished tube WT(mm) 0.8~4 mm
    Finished tube Length(m) 12 m
    Stroke Frequency of Mill time/min 60~200 time/min
    Stroke of Rolling mill bus(mm) 523 mm
    Feeding Length(mm) 1.7~6 mm
    rotation angle 52.7°
    Roll Diameter(mm) 220 mm
    Power(KW) 30 KW
    Size 25×2×1.3 m




    1. Name: LG20 cold pilger mill
    2. Input material: common carbon steel, alloy, nonferrous metal
    3. Used in: the field of Carbon pipes, Non-ferrous metal pipes, and so on.
    4. Shell OD(mm): 20~42MM
    5. Shell WT(mm): 1.2~5MM
    6. Shell Length(mm): 5m



    cold roll mill  advantages:

    1) Low maintenance cost
    2) Easy operation
    3) Extremely high yield
    4) Low failure rate
    5) Product with high precision


    high speed 30KW 220mm Roll Diameter Pilger Mill Machine 0

    Company Introduction:

    Zhangjiagang Hengli Machinery Co.,Ltd is specialized in developing and producing metallurgy machinery,food machinery and non-standard machinery etc. Various series of models can meet your demands in selection of LG series and LD series cold-rolling pipe mill, straightener and cold drawing machine and so on.


    • Hengli gurantees that all the goods supplied are completely new, technically advanced, high quality and the design, materials and manufacturing process are defectless, they conform to the technical performance required by the customer and can run safely.
    • Hengli gurantees that the gurantee period of the goods supplied is 12 months after the date of signing the certificate of goods acceptance.
    • Hengli gurantees that the goods supplied meet the requirements for the quality and technical performace specified during the gurantee period, if it is due to the responsibility of Hengli that the goods supplied do not confirm to the requirements for the specified quality and technical performance, the buyer has the right to lodge the claim.
    • Hengli gurantees that the technical documentation supplied is correct, complete and clear and conforms to the requirements for the design, inspection, installation, adjustment and maintance of the goods.
