Steel Bar Roll Cold Pilger Mill Machinery LG220 High Ductility
1
MOQ
Steel Bar Roll Cold Pilger Mill Machinery LG220 High Ductility
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Certification: ISO9000-2008
Model Number: LG220
High Light:

Steel Bar Roll Cold Pilger Mill

,

LG 220 Cold Pilger Mill Machine

,

High Ductility Cold Pilger Mill

Payment & Shipping Terms
Packaging Details: The machine must be entirely rust proof coated and painted using good quality rust proof coat and paint then oiled and packed in plastic to avoid rusting at sea. machine should be on wooden planks.
Delivery Time: 60 days
Payment Terms: TT/LC
Supply Ability: 20 sets/month
Specifications
Name: LG220 Cold Pilger Mill
Product Feature: High Ductility
Material: Carbon Steel,alloy Steel
Shell Length(mm): 8
Raw Material: Cast Steel/iron
Product Description

Steel Bar Roll Cold Pilger Mill Machinery Mills



Description:



1. Steel billet rolling mill

2. Turnkey project of complete line

3. Powerful working team and technology support

4. Cooperated with Best China Metallurgical Design Institute

5. Excellent user achievement and good positive feedback

6. Very challenging project quotation

7. Lifelong after-sales & maintenance support



Quick Detail:



Type LG220 cold pilger mill
Input material common carbon steel, alloy, nonferrous metal
Input size 115~255 mm

Output size: 89~219 mm



Specifications:



No.

Name

LG220



1

Shell OD(mm)

115~255

mm

2

Shell WT(mm)

6~22

mm

3

Shell Length(mm)

8

mm

4

Finished tube OD(mm)

89~219

mm

5

Finished tube WT(mm)

2~20

mm

6

Finished tube Length(m)

25

m

7

Stroke Frequency of Mill time/min

40~60

 time/min

8

Stroke of Rolling mill bus(mm)

1205

mm

9

Feeding Length(mm)

2.4~10.3

mm

10

rotation angle

42°



11

Roll  Diameter(mm)

650(580)

mm

12

Power(KW)

400

KW

13

Size

(L×W×H)

50×7.5×3.2

m





Competitive Advantage:



We provides custom designed solutions on pilger mills and tube reducers. Our true value is in our expertise in engineering designs through active tri-matrix software and then constructing these designs using our 15+ years of production & maintenance experience. We pride ourselves in offering good engineering solutions to your tube manufacturing process with a commitment to customer satisfaction. Our global customer base covers all alloys such as aluminum, stainless steel, copper, titanium, zirconium, gold, silver, platinum, palladium, and other special alloy materials.

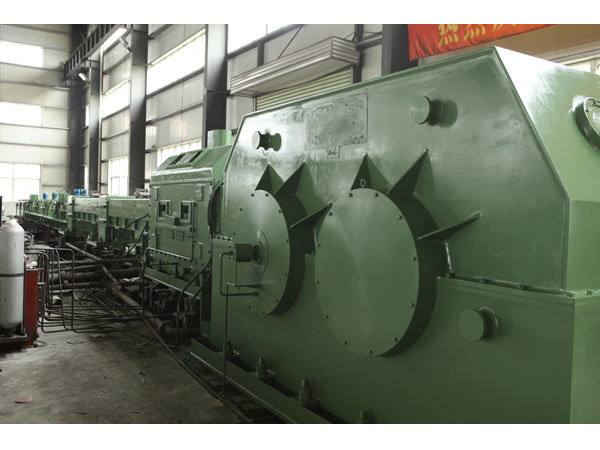

LG220 cold pilger mill:

Steel Bar Roll Cold Pilger Mill Machinery LG220 High Ductility 0





Reference photos for main equipment:



Steel Bar Roll Cold Pilger Mill Machinery LG220 High Ductility 1

Steel Bar Roll Cold Pilger Mill Machinery LG220 High Ductility 2
