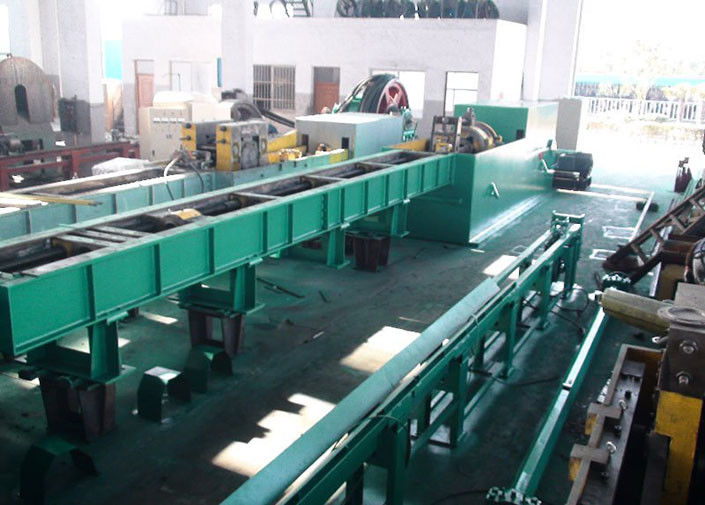

LD90 Cold Pilger Mill Machine Scrap Aluminum 2 - Roller Copper Rolling Mill Machinery

LD90 Cold Pilger Mill Machine Scrap Aluminum 2 - Roller Copper Rolling Mill Machinery

    • LD90 Cold Pilger Mill Machine Scrap Aluminum 2 - Roller Copper Rolling Mill Machinery
    • LD90 Cold Pilger Mill Machine Scrap Aluminum 2 - Roller Copper Rolling Mill Machinery
  • LD90 Cold Pilger Mill Machine Scrap Aluminum 2 - Roller Copper Rolling Mill Machinery

    Product Details:

    Place of Origin: China
    Brand Name: Hengli
    Certification: ISO9000-2008
    Model Number: LD90

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: The machine must be entirely rust proof coated and painted using good quality rust proof coat and paint then oiled and packed in plastic to avoid rusting at sea. machine should be on wooden planks.
    Delivery Time: 60 days
    Payment Terms: TT/LC
    Supply Ability: 20 sets/month
    Contact Now
    Detailed Product Description
    Name: Ld90 Cold Pilger Mill Material: Common Carbon Steel
    Used In: Scarp Aluminum Shell OD(mm): 35~114
    Finished Tube OD(mm): 30~108
    High Light:

    pilger mill machine

    ,

    two roll mill machine

    Scarp Aluminum 2-roller copper rolling mill Machinery , LD90 cold pilger mill



    Brief Introduction


    The unit is divided into 2-roller copper rolling mill and 3-roller copper rolling mill, is used in continuous rolling of copper and copper alloy rod. It's particularly suitable to be used in the rollig of the copper rod made from upward continuous casting machine with copper scrap as raw material,the process will improve the quality of the copper rod and make them more suitable for next process:drawing
    It has high efficiency, energy saving, refining, and strengthen the copper rod crystal organization and etc.



    Applications:





    Cold Rolling pilger mill is applied to reduce both out dimension and wall thickness of seamless tube. Tube material can be carbon steel, alloy steel, stainless steel, titanium, copper and copper alloy. LD90 five-roller cold pilger mill is applicable to state rolling,such as carbon steel,alloy steel,stainless steel,non-ferrous metal,rare metal and so on,with the characteristics of good turnoff precision,high surface roughness ect.









    Specifications:



    No.

    Name

    LD90 cold rolling mill



    1

    Shell OD(mm)

    35~114

    mm

    2

    Shell WT(mm)

    <10

    mm

    3

    Shell Length(mm)

    6

    mm

    4

    Finished tube OD(mm)

    30~108

    mm

    5

    Finished tube WT(mm)

    0.2~8

    mm

    6

    Finished tube Length(m)

    15

    m

    7

    Stroke Frequency of Mill time/min

    40~80

     time/min

    8

    Stroke of Rolling mill bus(mm)

    752

    mm

    9

    Feeding Length(mm)

    2.7~10.3

    mm

    10

    rotation angle

    35°



    11

    Roll  Diameter(mm)

    249

    mm

    12

    Power(KW)

    90

    KW

    13

    Size

    (L×W×H)

    40×4.6×2.5

    m





    Competitive Advantage:



    We provides custom designed solutions on pilger mills and tube reducers. Our true value is in our expertise in engineering designs through active tri-matrix software and then constructing these designs using our 15+ years of production & maintenance experience. We pride ourselves in offering good engineering solutions to your tube manufacturing process with a commitment to customer satisfaction. Our global customer base covers all alloys such as aluminum, stainless steel, copper, titanium, zirconium, gold, silver, platinum, palladium, and other special alloy materials.
